Part Number : ACM4002F
Function : 0.0-6.5V; 5x7dots with cursor; 40characters x 2lines; dot size0.60×0.65mm; dot pitch0.65×0.70mm; AZ display
Manufacturer : AZ Displays
Pinout :
Description
* Number of Characters : 40 characters x 2 lines
* Character Format : 5 x 7 dots with cursor

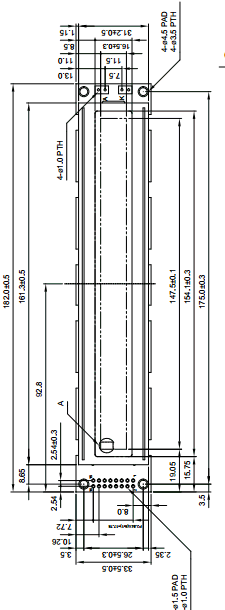

* Overall Module Size (W x H x D) :
182.0x 33.5x max 14.5for LED backlight version
182.0x 33.5x max 9.5for reflective or EL backlight version
* Dot Size (W x H) : 0.60x 0.65
* Dot Pitch (W x H) : 0.65x 0.70
* Duty : 1/16
* Controller IC : KS0066
* LC Fluid Options : STN
* Polarizer Options : Reflective, Transflective, Transmissive
* Backlight Options : EL, LED
* Temperature Range Options : Standard, Wide temp
Datasheet PDF Download
Other datasheets in the file :
ACM4002F,ACM4002F-FEBD-T,ACM4002F-FEBH-T,ACM4002F-FEBS-T,ACM4002F-FEBW-T
