Part Number : ACM1601B-NEGS-T
Function : 0.0-6.5V; 5x7dots with cursor; 16characters x 1lines; dot size0.55×0.75mm; AZ display
Manufacturer : AZ Displays

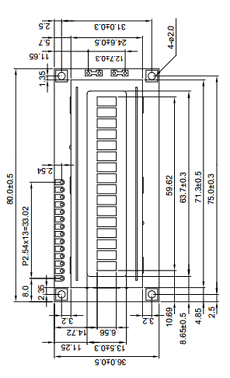

Pinout :
Description
* Number of Characters 16 characters x 1 line
* Character Format 5 x 7 dots with cursor
* Controller IC KS0066
Datasheet PDF Download
Other datasheets in the file :
ACM1601B,ACM1601B-FEBH-T,ACM1601B-FEBS-T,ACM1601B-FEBW-T,ACM1601B-FEFD-T
