Part Number : 74HC04-Q100

Function : Hex inverter

Manufacturer : NXP Semiconductors.

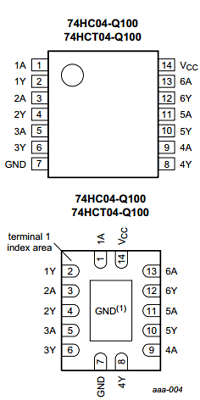

Pinout :

Description

General description
The 74HC04-Q100; 74HCT04-Q100 is a hex inverter. Inputs also include clamp diodes,
this enables the use of current limiting resistors to interface inputs to voltages in excess of
VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard
Q100 (Grade 1) and is suitable for use in automotive applications.

Features
Automotive product qualification in accordance with AEC-Q100 (Gra
 – Specified from 40C to +85C and from 40C to +125C
Complies with JEDEC standard JESD7A
Complies with JEDEC standard JESD8-1A
nput levels:
 – For 74HC04-Q100: CMOS level
 – For 74HCT04-Q100: TTL level
ESD protection:
 – MIL-STD-883, method 3015 exceeds 2000 V
 – HBM JESD22-A114F exceeds 2000 V
 – MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 )
Multiple package options



Datasheet PDF Download

Other datasheets in the file :
74HC04-Q100,74HC04BQ-Q100,74HC04D-Q100,74HC04DB-Q100,74HC04PW-Q100
