Part Number : 2SJ506
Function : Silicon P Channel MOS FET High Speed Power Switching
Manufacturer : Renesas Electronics

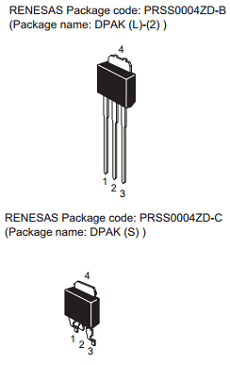

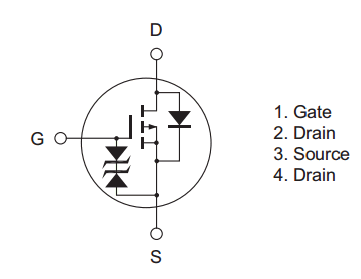

Pinout :
Description
* Low on-resistance
RDS(on)= 0.065 Ωtyp. (at V
GS = –10V, ID= –5A)
* Low drive current
* High speed switching
* 4V gate drive devices.
Datasheet PDF Download
Other datasheets in the file :
2SJ506,2SJ506(L),2SJ506(S),2SJ506L,2SJ506S
