Part Number : 2SD2499
Function : HORIZONTAL DEFLECTION OUTPUT FOR COLOR TV
Manufacturer : Toshiba

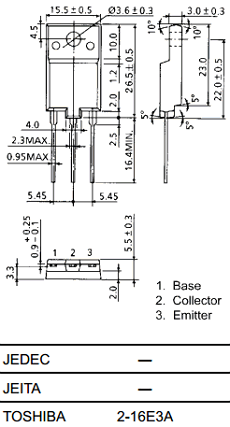

Pinout :
Description
* High Voltage : VCBO= 1500 V
* Low Saturation Voltage : VCE (sat) = 5 V (Max.)
* High Speed : tf= 0.3 µs (Typ.)
* Bult-in Damper Type
* Collector Metal (Fin) is Fully Covered with Mold Resin.
Datasheet PDF Download
Other datasheets in the file :
2SD2499,D2499
