Part Number : 2SC5125
Function : RF Power Transistor / NPN Epitaxail Planar Type
Manufacturer : MITSUBISHI ELECTRIC

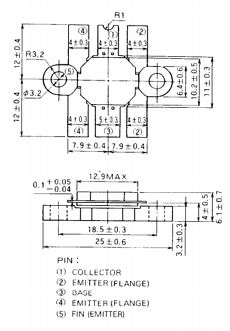

Pinout :
Description
2SC5152 is a silicon NPN epitaxail planar type transistor specifically designed for high power amplifiers in VHF band.
– Emitter ballasted construction.
– High reliability due to gold metalization die.
– Flange type ceramic package.
– For output stage of 70W power amplifier in VHF band.
Datasheet PDF Download
Other datasheets in the file :
2SC5125,C5125
