Part Number : 2SC4606
Function : Silicon NPN epitaxial planer type(For high speed switching)
Manufacturer : Panasonic Corporation

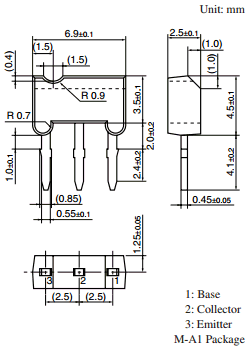

Pinout :
Description
For low-frequency driver amplification
Complementary to 2SA1762
• High collector-emitter voltage (Base open) VCEO
• Optimum for the driver stage of a low-frequency and 25 W to 30 W output amplifier
• M type package allowing easy automatic and manual insertion as well as stand-alone fixing to the printed circuit board
Datasheet PDF Download
