Part Number : 2SA1982
Function : Silicon PNP epitaxial planer type
Manufacturer : Panasonic Corporation

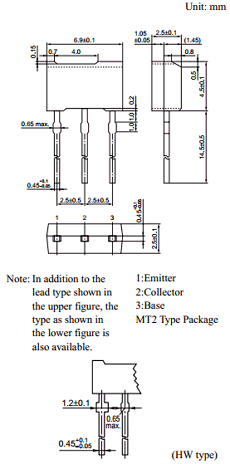

Pinout :
Description
For low-frequency high breakdown voltage amplification Complementary to 2SC5346
* Satisfactory foward current transfer ratio hFE collector current IC characteristics.
* High collector to emitter voltage VCEO.
* Small collector output capacitance Cob
* Makes up a complementary pair with 2SC2631, which is optimum for the pre-driver stage of a 20 to 40W output amplifier.
Datasheet PDF Download
Other datasheets in the file :
2SA1982,A1982
