Part Number : Z0109MA
Function :TRIACS 1.0 AMPERE RMS 600 VOLTS
Manufacturer : ON Semiconductor

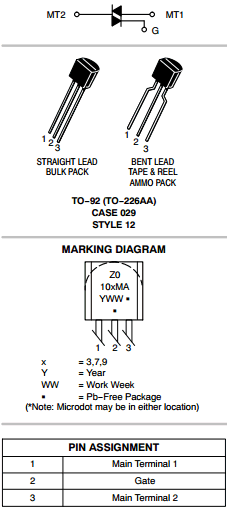

Pinout :
Description
Silicon Bidirectional Thyristors
Designed for use in solid state relays, MPU interface, TTL logic and any other light industrial or consumer application. Supplied in an inexpensive TO−92 package which is readily adaptable for use in automatic insertion equipment.
Features
• One−Piece, Injection−Molded Package
• Blocking Voltage to 600 V
• Sensitive Gate Triggering in Four Trigger Modes (Quadrants) for all possible Combinations of Trigger Sources, and especially for Circuits that Source Gate Drives
• All Diffused and Glassivated Junctions for Maximum Uniformity of Parameters and Reliability
• Improved Noise Immunity (dv/dt Minimum of 10 V/sec at 110°C)
• Commutating di/dt of 1.6 A/msec at 110°C
• High Surge Current of 8 A
• These are Pb−Free Devices
Datasheet PDF Download
Other datasheets in the file : Z0109MA, ZO109MA
