Part Number : UPSD3213AV-40U6T
Function : Flash Programmable System Devices with 8032 Microcontroller Core and 64Kbit SRAM
Manufacturer : STMicroelectronics

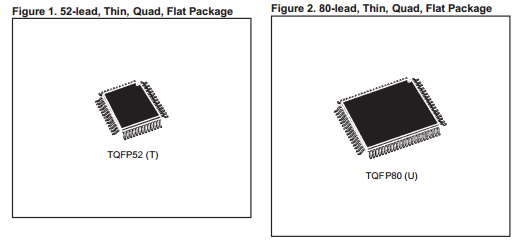

Pinout :
Description
TheµPSD323X Devices combine a Flash PSD
architecture with an 8032 microcontroller core.
TheµPSD323X Devices of Flash PSDs feature
dual banks of Flash memory, SRAM, general
purpose I/O and programmable logic, supervisory functions and access via USB, I
2
C, ADC,
DDC and PWM channels, and an on-board
8032 microcontroller core, with two UARTs,
three 16-bit Timer/Counters and two External
Interrupts. As with other Flash PSD families, the
µPSD323X Devices are also in-system programmable (ISP) via a JTAG ISP interface.
Datasheet PDF Download
Other datasheets in the file :
UPSD3213AV-40U6T,UPSD3213B-24T1T,UPSD3214BV-40T6T,UPSD3234BV-24U6T,UPSD3234BV-40U6T
