Part Number : UPG2301TQ
Function : NEC POWER AMPLIFIER FOR BLUETOOTH CLASS 1
Manufacturer : California Eastern Laboratories.

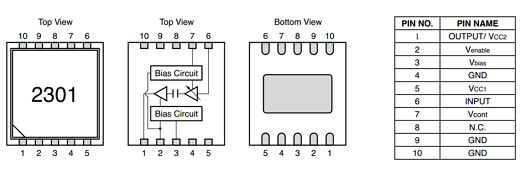

Pinout :
Description
NECs uPG2301TQ is a GaAs HBT MMIC for power amplifier
for Bluetooth Class 1.
This device realizes high efficiency, high gain and high
output power by using InGaP HBT. This device is housed in
a low profile 10-pin plastic TSON package.
