Part Number : UPG103B
Function : Low Noise Wide-Band Amplifier / 4dB TYP at. f = 1 GHz
Manufacturer : NEC => Renesas Technology

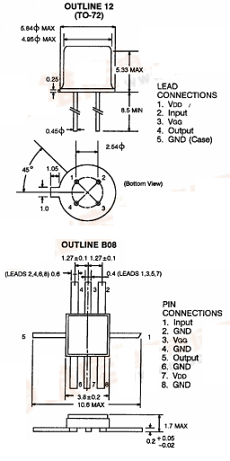

Pinout :
Description
The UPG103 is a GaAs monolithic intergrated circuit designed as a low noise amplifier from 60 MHz to 3 GHz.
The device is most suitable for the IF stage of microwave communication and measurement equipment.
They are easily cascadable for higher gain. It is available in chip, UPG103P, and two(2) package styles: UPG103A, a 4pin can and UPG103B, an 8 lead ceramic flat package for surface mount.
All devices can be screened for hi-rel applications.
Datasheet PDF Download
Other datasheets in the file :
UPG103A,UPG103A(1),UPG103B,UPG103P
