Part Number : UP6161
Function : Single 12V Input Supply Dual Regulator Synchronous Buck PWM and Linear Regulator Controller
Manufacturer : Unspecified

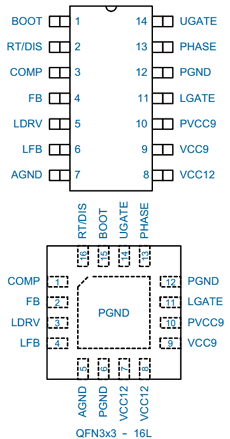

Pinout :
Description

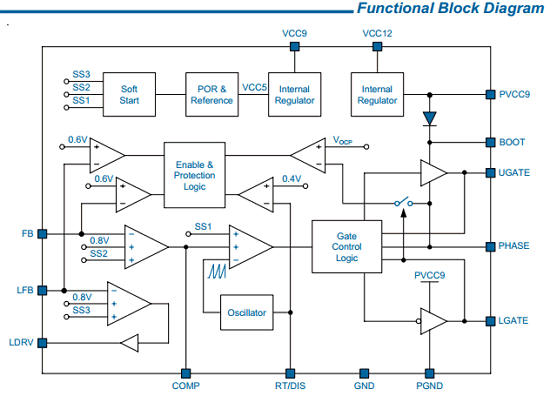

The uP6161 integrates a high performance synchronous rectified buck controller and a linear-regulator controller. This part works with a single +12V supply voltage and delivers two high quality output voltages for both processing unit and memory unit. An internal linear regulator provides optimum 9V drive voltage for efficiency and thermal management.
Datasheet PDF Download
Other datasheets in the file :
UP6161,UP6161Q,UP6161S14
