Part Number : ULN2804AFWG
Function : (ULN280xAxxx) 8ch Darlington Sink Driver
Manufacturer : Toshiba
Pinout :
Description
8ch Darlington Sink Driver
The ULN2803APG / AFWG Series are high−voltage, high−current darlington drivers comprised of eight NPN darlington pairs.
All units feature integral clamp diodes for switching inductive loads.
Applications include relay, hammer, lamp and display (LED) drivers.
Features
• Output current (single output) 500 mA (max)
• High sustaining voltage output 50 V (min)
• Output clamp diodes
• Inputs compatible with various types of logic.

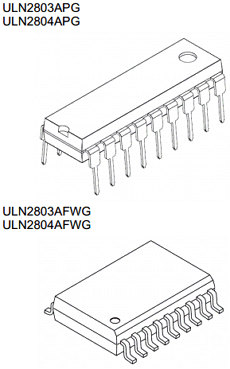

• Package Type−APG : DIP−18pin
• Package Type−AFWG : SOP−18pin
Datasheet PDF Download
Other datasheets in the file :
ULN2803AFWG,ULN2803APG,ULN2804AFWG,ULN2804APG
