Part Number : UDN6118A
Function : Vacuum fluorescent display driver
Manufacturer : Allegro MicroSystems

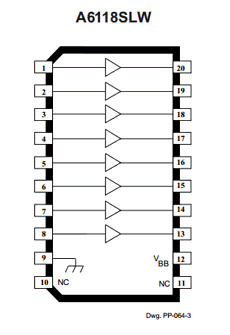

Pinout :
Description
Consisting of eight NPN Darlington output stages and the associated common-emitter input stages, these drivers are designed to interface between low-level digital logic and vacuum fluorescent displays.
Both devices are capable of driving the digits and/or segments of these displays and are designed to permit all outputs to be activated simultaneously. Pull-down resistors are incorporated into each output and no external components are required for most fluorescent display applications.
With any device, the output load is activated when the input is pulled towards the positive supply (active ‘high’). The UDN6118A is furnished in a standard 18-pin plastic DIP; the A6118SLW is in a 20-
lead wide-body SOIC. Both units operate over the temperature range of -20°C to +85°C.
These devices are also available for operation over the temperature range of -40°C to +85°C by changing the part number to UDQ6118A or A6118ELW.
Datasheet PDF Download
Other datasheets in the file :
6118A,A6118SLW,UDN6118A,UDQ6118A
