Part Number : TPS25940
Function : 18V eFuse with True Reverse Blocking and DevSleep Support for SSDs / WQFN 20 Pin
Manufacturer : Texas Instruments

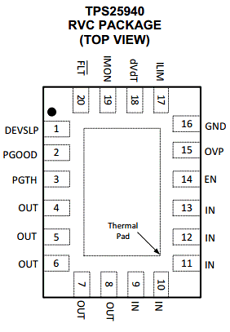

Pinout :
Description

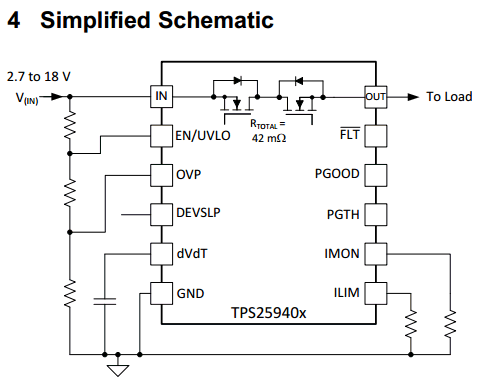

The TPS25940 eFuse Power Switch is a compact, feature rich power management device with a full suite of protection functions, including a low power DevSleep™ mode that supports compliance with the SATA™ Device Sleep standard.
The wide operating range allows control of many popular DC bus voltages. Integrated back to back FETs provide bidirectional current control making the device well suited for systems with load side holdup energy that must not drain back to a failed supply bus.
Datasheet PDF Download
Other datasheets in the file :
TPS25940,TPS25940A,TPS25940L
