Part Number : TLV271
Function : CMOS RAIL TO RAIL OUTPUT OPERATIONAL AMPLIFIERS
Manufacturer : Diodes Incorporated.

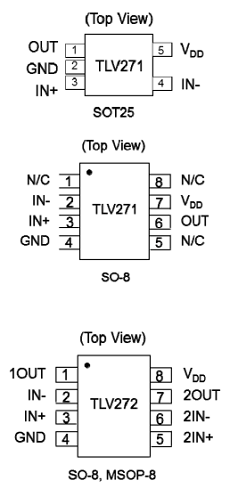

Pinout :
Description
The TLV27x provides a higher performance alternative to the TLC27x series of op-amps. These devices take the minimum operating supply voltage down to 2.7V over the extended industrial temperature range while adding the rail-to-rail output swing feature.
This makes it an ideal alternative to the TLC27x family for applications where rail-to-rail output swings are essential. The TLV27x also provides 2-MHz bandwidth from only 550μA supply current.
The TLV27x is fully specified for 5V and ±5V supplies. The maximum recommended supply voltage is 16V. The devices can be operated from a variety of rechargeable cells from ±8V down to ±1.35V.
Datasheet PDF Download
Other datasheets in the file :
TLV271,TLV271CS,TLV271CS-13,TLV271CW5,TLV271CW5-7
