Part Number : TIP145
Function : COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS
Manufacturer : STMicroelectronics

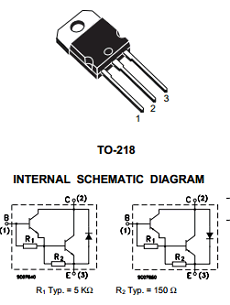

Pinout :
Description
The TIP140, TIP141 and TIP142 are silicon Epitaxial-Base NPN power transistors in monolithic Darlington configuration, mounted in TO-218 plastic package.
They are intented for use in power linear and switching applications.
The complementary PNP types are TIP145, TIP146 and TIP147 respectively.
■ TIP141, TIP142, TIP145 AND TIP147 ARE STMicroelectronics PREFERRED SALESTYPES
■ COMPLEMENTARY PNP – NPN DEVICES
■ MONOLITHIC DARLINGTON CONFIGURATION
■ INTEGRATED ANTIPARALLEL COLLECTOR-EMITTER DIODE
Datasheet PDF Download
Other datasheets in the file :
TIP140,TIP141,TIP142,TIP145,TIP146
