Part Number : TIP140
Function : Darlington Complementary Silicon Power Transistors
Manufacturer : ON Semiconductor

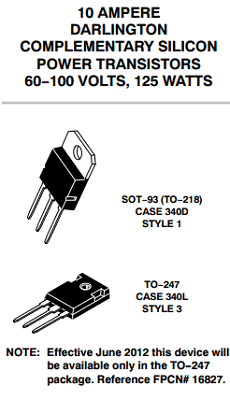

Pinout :
Description
Designed for general−purpose amplifier and low frequency switching applications.
Features
• High DC Current Gain − Min hFE = 1000 @ Ic = 5.0 A, Vce= 4 V
• Collector−Emitter Sustaining Voltage −@ 30 mA
Vceo(sus)
= 60 Vdc (Min) −TIP140, TIP145
= 80 Vdc (Min) −TIP141, TIP146
= 100 Vdc (Min) −TIP142, TIP147
• Monolithic Construction with Built−In Base−Emitter Shunt Resistor
• These are Pb−Free Devices*
Datasheet PDF Download
Other datasheets in the file :
TIP140,TIP141,TIP142,TIP145,TIP146
