Part Number : TIP100
Function : NPN Epitaxial Silicon Darlington Transistor
Manufacturer : Fairchild Semiconductor

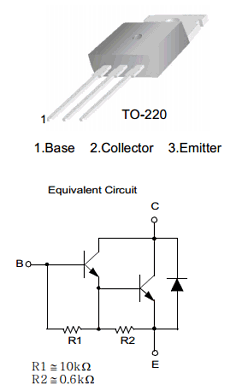

Pinout :
Description
• Monolithic Construction With Built In Base-Emitter Shunt Resistors
• High DC Current Gain : hFE =1000 @ V ce =4V, Ic =3A (Min.)
• Collector-Emitter Sustaining Voltage
• Low Collector-Emitter Saturation Voltage
• Industrial Use
• Complementary to TIP105/106/107
Datasheet PDF Download
Other datasheets in the file :
TIP100,TIP101,TIP102
