Part Number : TDA8841H
Function : I2C-bus controlled PAL/NTSC TV processor
Manufacturer : Philips Electronics

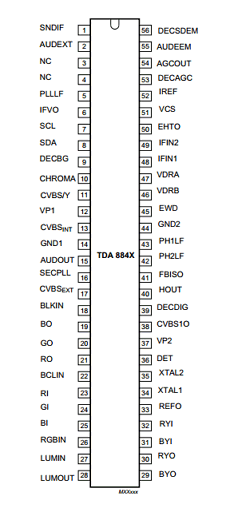

Pinout :
Description
The various versions of the TDA 884X/5X series are I2C-bus controlled single chip TV processors which are intended to be applied in PAL, NTSC, PAL/NTSC and multi-standard television receivers.
The N2 version is pin and application compatible with the N1 version, however, a new feature has been added which makes the N2 more attractive. The IF PLL demodulator has been replaced by
an alignment-free IF PLL demodulator with internal VCO (no tuned circuit required). The setting of the various frequencies (33.4, 33.9, 38, 38.9, 45,75 and 58.75 MHz) can be made via the I2C-bus.
Datasheet PDF Download
Other datasheets in the file :
TDA8841,TDA8841H,TDA8842,TDA8842H,TDA8843
