Part Number : TAS5611A
Function : 125W STEREO/250W MONO PurePath HD ANALOG-INPUT POWER STAGE / PHD (64-Pin QFP)
Manufacturer : Texas Instruments

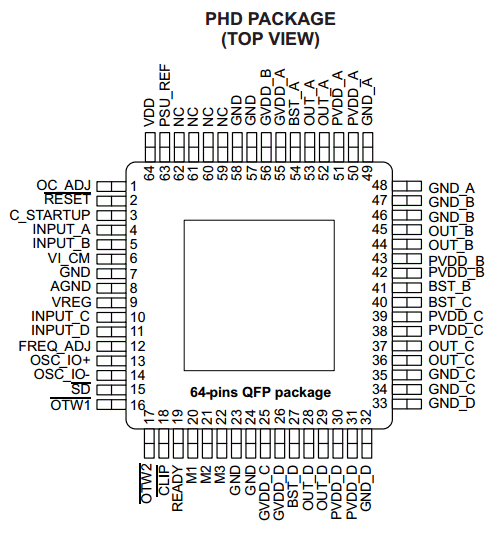

Pinout :
Description
The TAS5611A is a high performance analog input Class D amplifier with integrated closed loop feedback technology (known as PurePath HD) with the ability to drive up to 125W Stereo into 4 to 8 Ohm Speakers from a single 32.5V supply.
PurePath HD technology enables traditional AB-Amplifier performance (<0.03% THD) levels while providing the power efficiency of traditional class D amplifiers.
Unlike traditional Class D amplifiers, the distortion curve only increases once the output levels move into clipping.
Datasheet PDF Download
Other datasheets in the file :
TAS5611A,TAS5611APHD,TAS5611APHDR
