Part Number : SY8009
Function : High Efficiency 1.5MHz/1MHz, 1.5A/2A Synchronous Step Down Regulator
Manufacturer : Unspecified

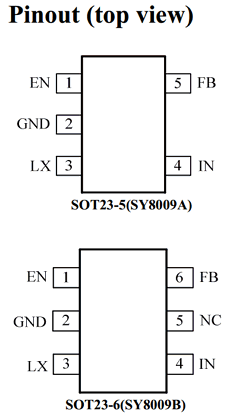

Pinout :
Description
SY8009AAAC : SOT23-5
SY8009BABC : SOT23-6
SY8009BEBC : SSOT23-6
The SY8009A and SY8009B are high-efficiency, high frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 1.5A/2A output currents.
The SY8009 family operate over a wide input voltage range from 3V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Datasheet PDF Download
Other datasheets in the file :
SY8009,SY8009A,SY8009AAAC,SY8009B,SY8009BABC
