Part Number : SW8603
Function : (SW8600 – SW8604) MOSFET / Built-in high-voltage MOSFET current-mode PWM controller series
Manufacturer : Unspecified

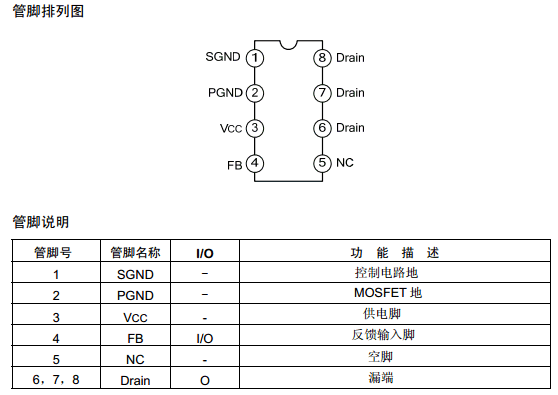

Pinout :
Description
SW8600 / 8601/8603/8604 is built for switching power supply High Voltage MOSFET current-mode PWM controller family.
The circuit is low standby power consumption, low starting current. In standby mode, the power Road enters hiccup mode, thus effectively reducing the standby power circuit.
The switch frequency is 67KHz, the jitter of the oscillation frequency can be obtained to be low EMI.
Built-in 15ms soft start circuit can be reduced during power transformer Stress, prevent transformer saturation.
Datasheet PDF Download
Other datasheets in the file :
SW8600,SW8601,SW8603,SW8604
