Part Number : STW20NM60
Function : N-CHANNEL 600V – 0.26 OHM – 20A TO-247 MDMESH POWER MOSFET
Manufacturer : STMicroelectronics

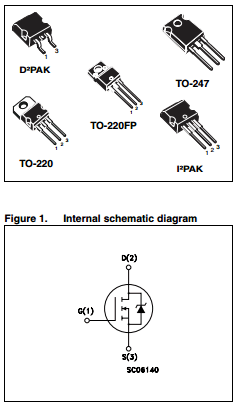

Pinout :
Description
Features
■ High dv/dt and avalanche capabilities
■ 100% avalanche tested
■ Low input capacitance and gate charge
■ Low gate input resistance
Applications
■ Switching applications
Description
The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple
drain process with the company’s PowerMESH horizontal layout. The resulting product has an
outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics. The
adoption of the company’s proprietary strip technique yields overall dynamic performance
that is significantly better than that of similar competition’s products.
Datasheet PDF Download
Other datasheets in the file :
B20NM60,B20NM60-1,P20NM60,P20NM60FP,STB20NM60
