Part Number : STW11NK90Z
Function : N-channel 900V – 0.82 Ohm- 9.2A – TO-247 / Zener-protected SuperMESH Power MOSFET / Vdss = 900V
Manufacturer : STMicroelectronics

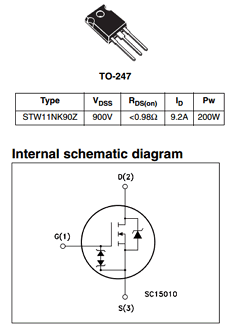

Pinout :
Description
Marking : W11NK90Z, Package : TO-247
The SuperMESH series is obtained through an extreme optimization of ST’s well established
strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special
care is taken to ensure a very good dv/dt capability for the most demanding applications.
Such series complements ST full range of high voltage Power MOSFETs including revolutionary
MDmesh products
http://www.st.com/web/en/catalog/sense_power/FM100/CL824/SC1168/PF92689
Datasheet PDF Download
Other datasheets in the file :
STW11NK90Z,W11NK90Z
