Part Number : STP4NK60ZFP
Function : N-channel 600 V, 1.76 Ohm, 4 A SuperMESH(TM) Power MOSFET in TO-220FP / Marking : P4NK60Z, P4NK60ZFP
Manufacturer : STMicroelectronics

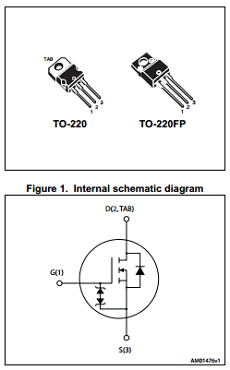

Pinout :
Description
Marking : P4NK60Z, P4NK60ZFP
These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics’ SuperMESH™ technology, achieved through optimization of ST’s well established strip-based PowerMESH™ layout. In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.
- 100% avalanche tested
- Very low intrinsic capacitances
- Zener-protected
Datasheet PDF Download
Other datasheets in the file :
4NK60Z,4NK60ZFP,P4NK60Z,P4NK60ZFP,STP4NK60Z
