Part Number : SP213EHCA-L
Function : High speed +5V high performance RS232 transceivers
Manufacturer : Exar Corporation

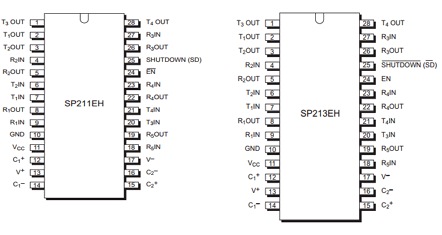

Pinout :
Description
■ Single +5V Supply Operation
■ 0.1μF External Charge Pump Capacitors
■ 500kbps Data Rate Under Load
■ Standard SOIC and SSOP Footprints
■ Lower Supply Current Than Competition(typical 3mA)
■ 1μA Shutdown Mode
■ Wake-Up Feature in Shutdown Mode
■ Tri-State Receiver Outputs
■ Ideal for High Speed RS-232 Applications
■ Improved ESD Specifications:
+-5kV Human Body Model
+-5kV IEC 6000-4-2 Air Discharge
+-8kV IEC 6000-4-2 Contact Discharge
Datasheet PDF Download
Other datasheets in the file :
SP211EHCA-L,SP211EHCA-L/TR,SP211EHCT-L,SP211EHCT-L/TR,SP211EHEA-L
