Part Number : SN74LVC1G32DBVR
Function : SINGLE 2-INPUT POSITIVE-OR GATE
Manufacturer : Texas Instruments

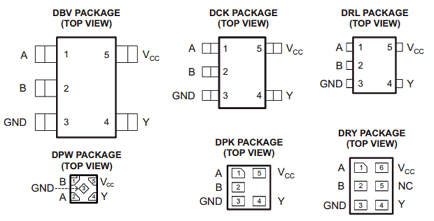

Pinout :
Description
Features
• Available in the Texas Instruments NanoStar™ and NanoFree™ Packages
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Supports Down Translation to VCC
• Max tpd of 3.6 ns at 3.3 V
• Low Power Consumption, 10-µA Max ICC
• ±24-mA Output Drive at 3.3 V
Datasheet PDF Download
Other datasheets in the file :
SN74AHC1G32DBVR,SN74AHC1G32DCKR,SN74AHCT1G32DBVR,SN74AHCT1G32DCKR,SN74LVC1G32DBVR
