Part Number : SN74HC00N
Function : QUADRUPLE 2-INPUT POSITIVE-NAND GATES
Manufacturer : Texas Instruments

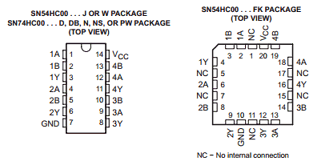

Pinout :
Description
. Wide Operating Voltage Range of 2 V to 6
. Outputs Can Drive Up To 10 LSTTL Loads
. Low Power Consumption, 20-µA Max ICC
. Typical tpd = 8 ns
. ±4-mA Output Drive at 5 V
. Low Input Current of 1 µA Max
Datasheet PDF Download
Other datasheets in the file :
5962-8403701VCA,5962-8403701VDA,84037012A,8403701CA,8403701DA
