Part Number : SN74AHC595
Function : 8-BIT SHIFT REGISTERS WITH 3-STATE OUTPUT REGISTERS
Manufacturer : Texas Instruments

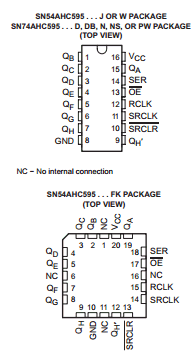

Pinout :
Description
FEATURES
• Operating Range 2-V to 5.5-V Vcc
• 8-Bit Serial-In, Parallel-Out Shift
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Datasheet PDF Download
Other datasheets in the file :
74AHC595D,74AHC595DBR,74AHC595DBRE4,74AHC595DBRG4,74AHC595DE4
