Part Number : SSC1S311

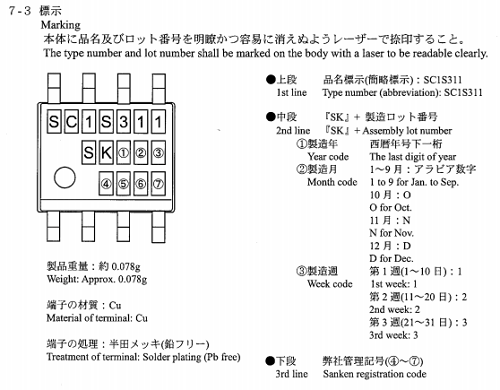

SSC1S311 is marking SC1S311.
Manufacturer : Sanken Electroinc
1. Scope
The present specifications shall apply to a monolithic IC type SSC1S311 for Switching regulators.
2. Outline
(1) Type : Monolithic IC
(2) Structure : Plastic mold package (Transfer mold)
(3) Applications : Switching regulators
3. Absolute maximum ratings
4. Electrical characteristics

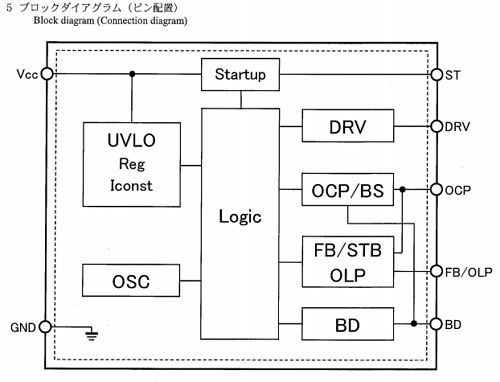

5. Block diagram
6. Example application circuit
7. Package outline
8. Packing specifications
9. Cautions and warnings
SC1S311 SOP8
SMD 8 Pin Package ( Drvie FET )
