Part Number : S20C30CE
Function : SchottkyBarrier Rectifiers / S20C30CE thru S20C60CE
Manufacturer : Mospec Semiconductor

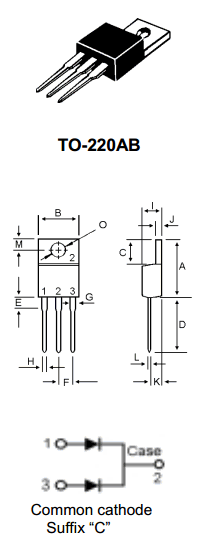

Pinout :
Description
Using the SchottkyBarrier principle with a Molybdenum barrier metal.
These state-of-the-art geometryfeatures epitaxial construction with oxide passivation and metal overlaycontact. Ideallysuited for lowvoltage, high frequencyrectification, or as free wheeling and polarityprotection diodes.
* LowForward Voltage.
* LowSwitching noise.
* High Current Capacity
* Guarantee Reverse Avalanche.
* Guard-Ring for Stress Protection.
* LowPower Loss & High efficiency.
* 150`C Operating Junction Temperature
* LowStored Charge MajorityCarrier Conduction.
* Plastic Material used Carries Underwriters Laboratory Flammability Classification 94V-O
Datasheet PDF Download
Other datasheets in the file :
S20C30CE,S20C35CE,S20C40CE,S20C45CE,S20C50CE
