Part Number : PIC18F66K80
Function : 28/40/44/64-Pin, Enhanced Flash Microcontrollers
Manufacturer : Microchip Technology

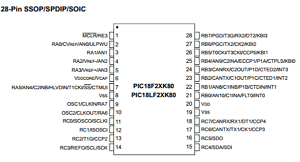

Pinout :
Description
Power-Managed Modes:
• Run: CPU on, Peripherals on
• Idle: CPU off, Peripherals on
• Sleep: CPU off, Peripherals off
• Two-Speed Oscillator Start-up
• Fail-Safe Clock Monitor (FSCM)
• Power-Saving Peripheral Module Disable (PMD)
• Ultra Low-Power Wake-up
• Fast Wake-up, 1 s, Typical
• Low-Power WDT, 300 nA, Typical
• Run mode Currents Down to Very Low 3.8 A, Typical
• Idle mode Currents Down to Very Low 880 nA, Typical
• Sleep mode Current Down to Very Low 13 nA, Typical
ECAN Bus Module Features:
• Conforms to CAN 2.0B Active Specification
• Three Operating modes:
– Legacy mode (full backward compatibility with existing PIC18CXX8/FXX8 CAN modules)
– Enhanced mode
– FIFO mode or programmable TX/RX buffers
• Message Bit Rates up to 1 Mbps
• DeviceNet™ Data Byte Filter Support
• Six Programmable Receive/Transmit Buffers
• Three Dedicated Transmit Buffers with Prioritization
• Two Dedicated Receive Buffers
Datasheet PDF Download
Other datasheets in the file :
PIC18F25K80,PIC18F26K80,PIC18F45K80,PIC18F46K80,PIC18F65K80
