Part Number : PCF2116
Function : LCD controller/drivers
Manufacturer : Philips Electronics

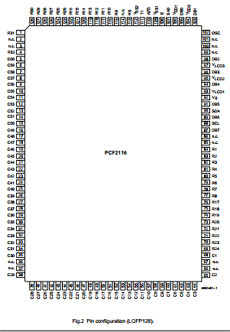

Pinout :
Description
The PCF2116 family of LCD controller/drivers consists of the PCF2116x, the PCF2114x and the PCF2116K.
The term ‘PCF2116’ is used to refer to all devices for common information. Specific information is given in separate paragraphs.
The ‘x’ in ‘PCF2116x’ and ‘PCF2114x’ represents a specific letter code for a character set in the character generator ROM (CGROM). The different character sets currently available are specified by the letters A, C, and G (see Figs 8 to 10). Other character sets are available on
request.
Datasheet PDF Download
Other datasheets in the file :
PCF2114,PCF2114AU,PCF2114xU/10,PCF2114xU/12,PCF2116
