Part Number : PCA9544APW
Function : 4-CHANNEL I2C AND SMBus MULTIPLEXER
Manufacturer : NXP Semiconductors.
Pinout :
Description

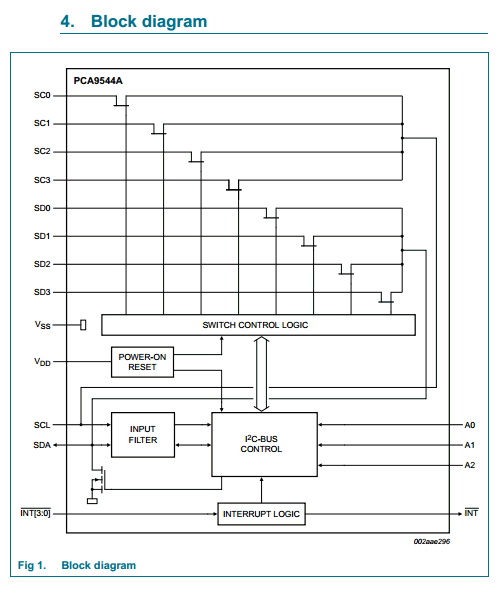

The PCA9544A is a 1-of-4 bidirectional translating multiplexer, controlled via the I2C-bus.
The SCL/SDA upstream pair fans out to fourSCx/SDx downstream pairs, or channels.
The pass gates of the multiplexer are constructed such that the VDDpin can be used to limit the maximum high voltage which is passedby the PCA9544A. This allows the use of different bus voltages on each SCx/SDx pair, so that 1.8 V, 2.5 V or 3.3 V parts can communicate with 5 V parts without any additional protection. External pull-up resistors pull the bus up to the desired voltage level for each channel. All I/O pins are 5 V tolerant.
Datasheet PDF Download
Other datasheets in the file :
PCA9544ABS,PCA9544ABS,118,PCA9544AD,PCA9544AD,112,PCA9544AD,118
