Part Number : OZT1060
Function : Phase-Shift PWM Controller / SOP20 Package
Manufacturer : O2Micro International

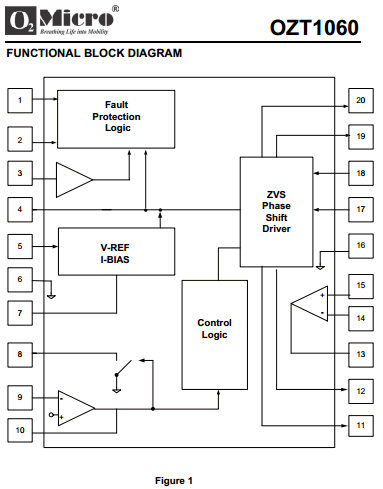

Pinout :
Description
OZT1060 is a high efficiency, Pulse Width Modulation (PWM) controller designed for both DC/DC and DC/AC high-voltage applications.
The average current mode control is suitable for DC/DC converters where both voltage and current feedback are required, as well as for Cold Cathode Fluorescent Lamps (CCFL) backlight applications for small and large Liquid Crystal Displays (LCD).
OZT1060 operates in a zero-voltage switching mode that minimizes electromagnetic interference (EMI).
Datasheet PDF Download
Other datasheets in the file :
OZT1060,OZT1060G,OZT1060GN,OZT1060S,OZT1060SN
