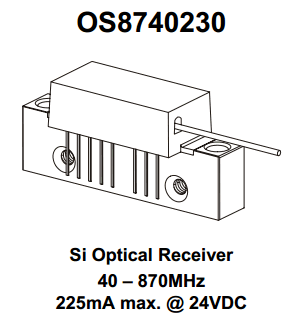

Part Number : OS8740230
Function : Si Optical Receiver, 40– 870MHz, 225mA max. @ 24VDC
Manufacturer : Unspecified
Pinout :
Description
Hybrid high dynamic range optical receiver amplifier module. Two ofthe module pins are for connection to 24V (DC), one for amplifiersupply voltage, the other for the PIN diode bias. The module contains a single modeoptical input suitable for wavelengths from 1290 to 1600 nm, a terminal to monitor the PIN diode current and an electricaloutput with an impedance of 75 Ω.
