Part Number : OP27AJGB
Function : LOW-NOISE HIGH-SPEED PRECISION OPERATIONAL AMPLIFIERS
Manufacturer : Texas Instruments

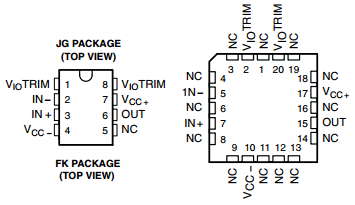

Pinout :
Description
Replacements for ADI, PMI and LTC OP27 Series
Features of OP27A and OP27C:
Maximum Equivalent Input Noise Voltage:
3.8 nV/√Hzat 1 kHz
5.5 nV/√Hzat 10 kHz
Very Low Peak-to-Peak Noise Voltage at
0.1 Hz to 10 Hz . . . 80 nV Typ
Low Input Offset Voltage
OP27A…25 μV Max
OP27C. . . 100 μV Max
High Voltage Amplification
OP27A…1 V/μV Min
OP27C…0.7 V/μV Min
Datasheet PDF Download
Other datasheets in the file :
JM38510/13506BPA,M38510/13506BPA,OP27,OP27AFKB,OP27AJGB
