Part Number : NLU1G00
Function : Single 2-Input NAND Gate
Manufacturer : ON Semiconductor

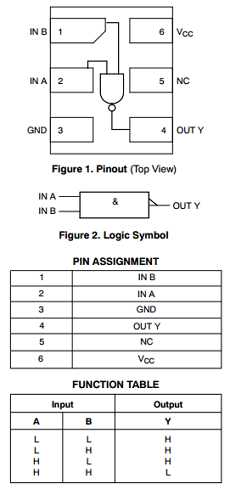

Pinout :
Description
The NLU1G00 MiniGate is an advanced high−speed CMOS 2−input NAND gate in ultra−small footprint.
The NLU1G00 input and output structures provide protection when voltages up to 7.0 V are applied, regardless of the supply voltage.
• High Speed: tPD = 3.5 ns (Typ) @ VCC= 5.0 V
• Low Power Dissipation: ICC= 1 A (Max) at TA= 25°C
• Power Down Protection Provided on inputs
• Balanced Propagation Delays
• Overvoltage Tolerant (OVT) Input and Output Pins
• Ultra−Small Packages
• These are Pb−Free Devices
