Part Number : NJM2035D

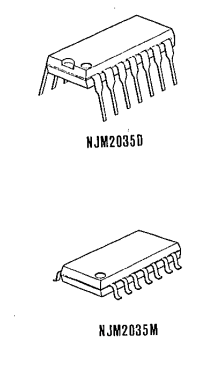

Function : Stereo modulator / DIP 14, DMP 14
Manufacturer : Japan Radio Corporation

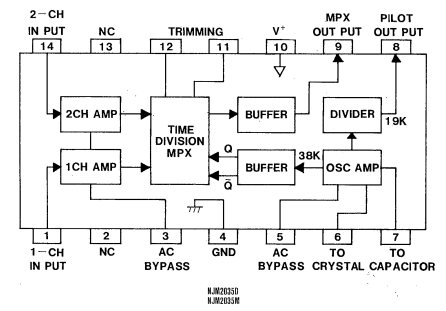

Pinout :
Description
The NJM2035 is an integrated circuit used to generate a stereo composite signal and obtain switching output and 19kHz pilot signal due to two input audio signal and 38kHz X-tal and a few external CR.
The NJM2035 operates at 1.5V battery typically and even at 1.2V obtains separation more than 25dB.
Datasheet PDF Download
Other datasheets in the file :
NJM2035,NJM2035D,NJM2035M,NJM2035M-T1,NJM2035M-T2
