Part Number : MMBD7000
Function : 100V; dual surface mount switching diode. General purpose switching application
Manufacturer : Diodes Incorporated.

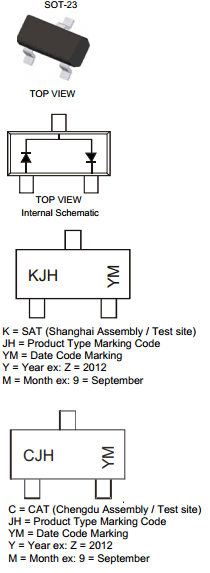

Pinout :
Description
Features
Fast Switching Speed: Maximum of 4ns
Low Total Capacitance: Maximum of 2pF
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Mechanical Data
Case: SOT23
Case Material: Molded Plastic,“Green” Molding Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe)
Polarity: See Diagram
Weight: 0.008 grams (approximate)
