Part Number : MIP2F20MS
Function : High-Performance IPD for Battery Chargers MIP2F×Series
Manufacturer : Panasonic Corporation
Pinout :
Description
MIP2F×series is a high-performance IPD designed for 20W battery chargers. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts.
It provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads, while also conserving power during standby.
Datasheet PDF Download
Other datasheets in the file :

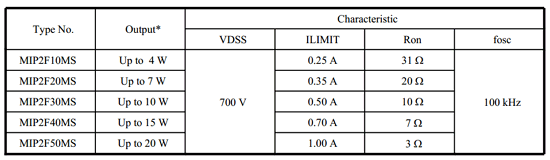

MIP2F10MS,MIP2F20MS,MIP2F30MS,MIP2F40MS,MIP2F50MS
