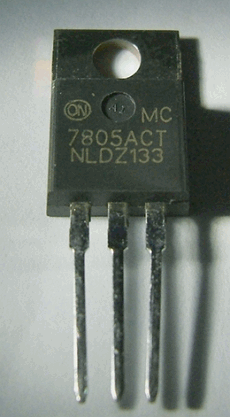

Part Number : MC7805ACT
Function : Three-Terminal Positive Voltage Regulator
Manufacturer : ON Semiconductor
Pinout :
Description
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a widevariety of applications including local, on−card regulation.
These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A.
Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
