Part Number : MBRB1530CT
Function : 15A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER High Current Capability and Low Forward Voltage Drop
Manufacturer : Diodes Incorporated.

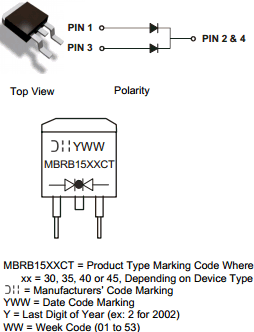

Pinout :
Description
Features and Benefits
• Guard Ring Die Construction for Transient Protection
• Low Power Loss, High Efficiency
• High Surge Capability
• High Current Capability and Low Forward Voltage Drop
• Surge Overload Rating to 150A Peak
• For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications
• Lead Free Finish, RoHS Compliant
Mechanical Data
• Case: D2PAK
• Case Material: Molded Plastic.UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish ⎯Tin. Solderable per MIL-STD-202, Method 208
• Polarity: See Diagram
• Weight: 1.7 grams (approximate)
