Part Number : M74HC7266
Function : QUAD EXCLUSIVE NOR GATE WITH OPEN DRAIN
Manufacturer : STMicroelectronics

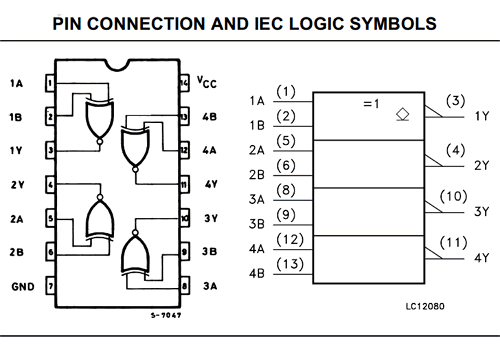

Pinout :
Description
The M74HC266 is an high speed CMOS QUAD EXCLUSIVE NOR GATE fabricated with silicon gate C
2MOS technology.
The M74HC266 has a high performance N-channel MOS transistor (OPEN DRAIN output).
Input and Output ensure high noise immunity and stable outputs.
Datasheet PDF Download
Other datasheets in the file :
74266,74HC266,M74HC266,M74HC266B1R,M74HC266M1R
