Part Number : M28W320
Function : 32 MBIT (2MB X16, BOOT BLOCK) LOW VOLTAGE FLASH MEMORY
Manufacturer : STMicroelectronics

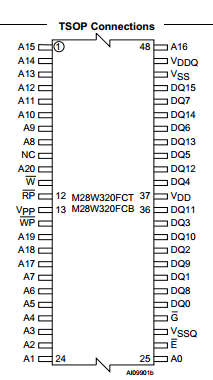

Pinout :
Description
Features
■ Supply Voltage
–Vdd = 2.7V to 3.6V Core Power Supply
–Vddq = 1.65V to 3.6V for Input/Output
–Vpp= 12V for fast Program (optional)
■ Access Time: 70, 80, 90, 100ns
■ Programming Time
– 10µs typical
– Double Word Programming Option
– Quadruple Word Programming Option
■ Common Flash Interface
■ Memory Blocks
– Parameter Blocks (Top or Bottom location)
– Main Blocks
■ Block Locking
– All blocks locked at Power Up
– Any combination of blocks can be locked
–WP for Block Lock-Down
Datasheet PDF Download
Other datasheets in the file :
M28W320,M28W320FCB,M28W320FCT
