Part Number : M28C16
Function : 16K (2K x 8) PARALLEL EEPROM with SOFTWARE DATA PROTECTION
Manufacturer : STMicroelectronics

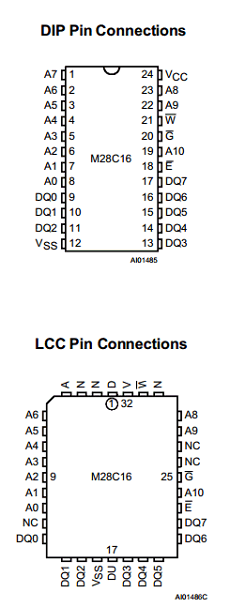

Pinout :
Description
The M28C16 is a 2K x 8 low power Parallel EEPROM fabricatedwith SGS-THOMSON proprie tary single polysilicon CMOS technology.
The device offers fast access time with low power dissipation and requires a 5V power supply.
The circuit has been designed to offer a flexible microcontroller interface featuring both hardware
and software handshaking with Data Polling and Toggle Bit.
The M28C16 supports 64 byte page write operation. A Software Data Protection (SDP) is also possible using the standard JEDEC algorithm.
Datasheet PDF Download
Other datasheets in the file :
M28C16,M28C16-120K1,M28C16-120K6,M28C16-120MS1,M28C16-120MS6
