Part Number : LM339N
Function : Quad voltage comparators for square wave generator, time delay generators, pulse generators and etc
Manufacturer : Fairchild Semiconductor

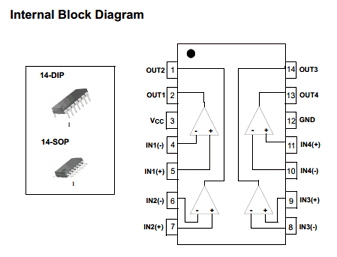

Pinout :
Description
• Single or Dual Supply Operation
• Wide Range of Supply Voltage LM2901, LM339/LM339A, LM239A: 2 ~ 36V (or ±1, ±18V)
• Low Supply Current Drain 800μA Typ.
• Open Collector Outputs for Wired and Connectors
• Low Input Bias Current 25nA Typ.
• Low Input Offset Current ±2.3nA Typ.
• Low Input Offset Voltage ±1.4mV Typ.
• Input Common Mode Voltage Range Includes Ground
• Low Output Saturation Voltage
• Output Compatible With TTL, DTL and MOS Logic System
Datasheet PDF Download
Other datasheets in the file :
LM239,LM239A,LM239AM,LM239AN,LM2901
