Part Number : LM325N
Function : Dual Voltage Regulator
Manufacturer : National ->Texas Instruments

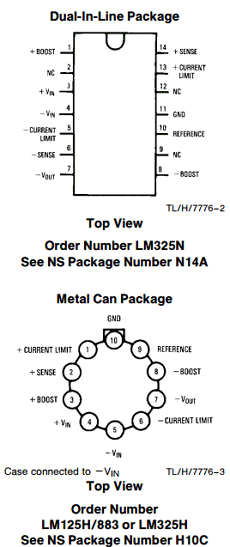

Pinout :
Description
These dual polarity tracking regulators are designed to provide balanced positive and negative output voltages at current up to 100 mA, and are set for +-15V outputs. Input voltages up to +-30V can be used and there is provision for adjustable current limiting.
These devices are available in two package types to accommodate various power require ments and temperature ranges.
Acquired by Texas Instruments on September 23rd, 2011.
Datasheet PDF Download
Other datasheets in the file :
LM125,LM125H,LM325,LM325AN,LM325H
